JSM Pile Guide

Pile mooring is usually adopted when water level variations are large. The pontoon structure is moored to the piles through pile guides.

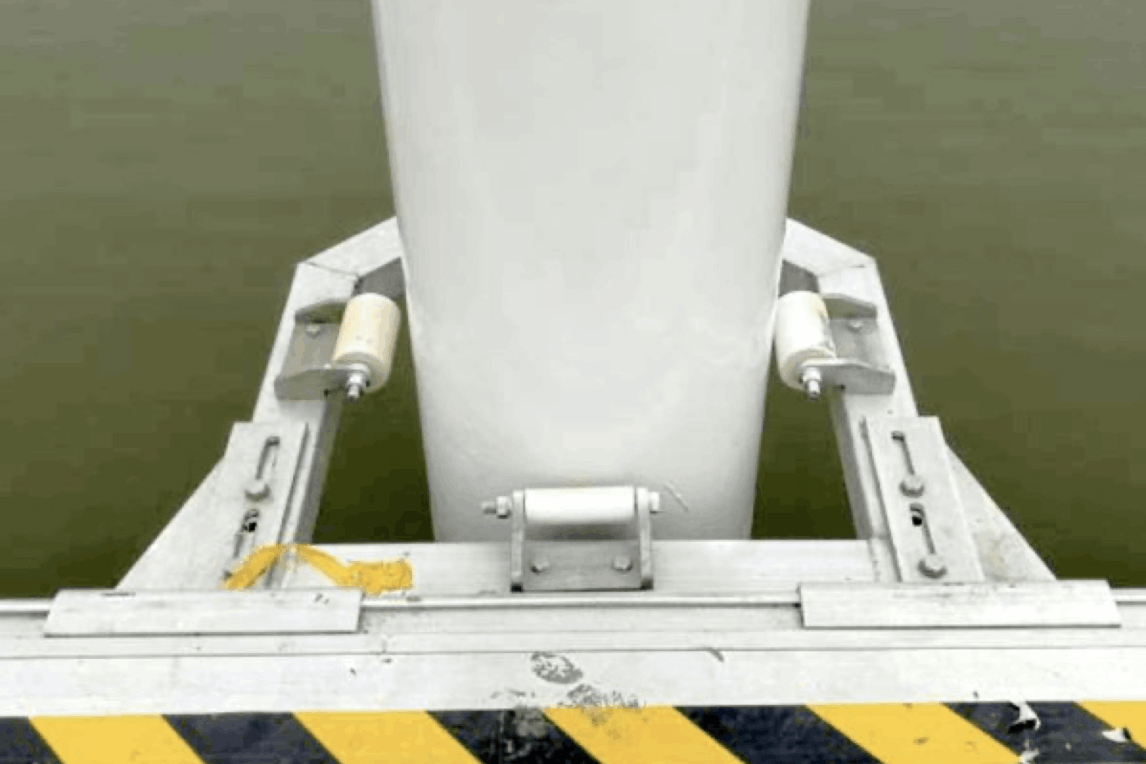

JSM’s pile guides are designed for mooring all types of pontoon structures. Calculations have been considered for the design of the pile guide. Made from aluminum 6082-T6, desirable attributes are its strong weld connection, low friction UHMWPE wearing blocks/ rollers and rubber fenders installed all round. The position of the pile guide is adjustable to suit the piles already driven on site.
